Electrocardiograph ECG T12A
- Category: Medical
Details:
- Brand: PROMED
- Model: T12A
- Manufacturer: China
- Origin: China
Technical Specifications
Display: Resolution: 1024 x 768
Type:
– 7-inch TFT (T12A)
– 9.7-inch TFT (T12B)
– Operation Mode: Touchscreen
Acquisition
– Leads: 9/12 leads
– Sampling Rate: 16000Hz
– A/D Resolution Range: 24 bits
– Heart Rate: 30~300 BPM
– Accuracy: ±1 BPM
– Time Constant: ±3.2 seconds
– Input Circuit Current: ±0.01 A
– Input Voltage Range: ±5 mV peak-to-peak
– Calibration Voltage: ±1 mV ±2%
– DC Offset Voltage: ±600 mV
– Input Impedance: 100 MΩ
– CMRR: ±120 dB
– Frequency Response: 0.01–300 Hz +0.4 dB –3.0 dB
– Resolution: 2.5 µV/LSB
– AC Filter: 50 Hz / 60 Hz / Off
– DFT Filter: 0.01 Hz / 0.05 Hz / 0.32 Hz / 0.67 Hz
– EMG/Low-Pass Filter: 25 Hz / 35 Hz / 45 Hz / 75 Hz / 100 Hz / 150 Hz / 270 Hz / 300 Hz
– Pacemaker Detector:
• Amplitude: 750 µV ~ 700 mV
• Duration: 50 µs ~ 2.0 ms
• Sampling Rate: 16,000 Hz
Printer
– Modes: Manual/Automatic
– Gain: 2.5 mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV, 10/5 mm/mV, AGC 5%
– Speed: 5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s 3%
– Type: Thermal dot matrix printer
– Print density:
• Amplitude axis: 8 dots/mm (200 dpi)
• Time axis, @25 mm/s): 40 dots/mm (1000 dpi)
– Paper: Folded thermal paper: 210 mm x 140 mm, 20 m
Description
- The product detailed below is new, not refurbished, manufactured in China in 2025 with software of American origin.

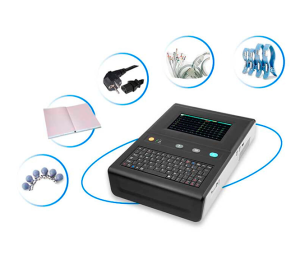

The T12A is a 12-channel digital electrocardiograph designed for acquiring and recording ECG signals in adult and pediatric patients. Developed for hospitals and healthcare facilities, this device uses digital signal processing to optimize the ECG signal, assisting physicians in the accurate diagnosis of cardiac conditions.
– Compact and fully portable design, optimized for hospital and outpatient environments.

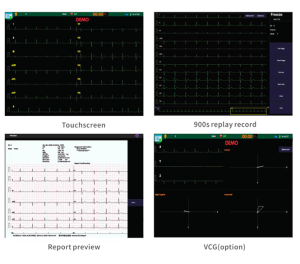

– Operation via full keyboard and touchscreen (1024×768 resolution).
– Advanced Might-Gold algorithm for accurate automatic measurements and interpretation.
– Sampling rate up to 16,000 Hz, with pacemaker detection capability.
– Configurable simultaneous acquisition of 9 or 12 leads.
– High-precision digital filter that reduces polarization voltage and other interference.
– Internal storage capacity for up to 1000 ECG recordings (expandable via USB memory).
– Advanced ECG analysis: CVC, CVT, LVP, HRV, and pharmacological studies (optional).
– Support for DAT, SCP, PDF, XML, DICOM, and worklist formats, with optional HIS system integration.
– Dual lithium-ion battery option, suitable for various applications. • Compatible with external USB printers, keyboards, mice, barcode scanners, and other peripherals.
– Direct data transfer to PC via Ethernet, USB, or Wi-Fi (optional).
